Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator

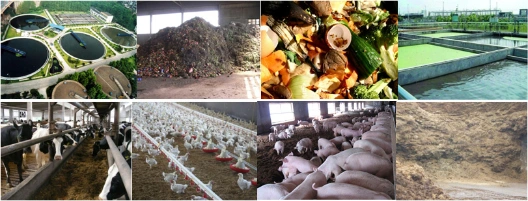

Biogas refers to the methane-based combustible gas generated by organic matter microbial fermentation under the anaerobic condition, for example from industrial sewage water, agricultural waste or urban life organic waste (such as liquid lees, livestock manure, municipal waste and sewage, etc.).
Its main ingredient is methane (CH4), usually accounts for 45% to 60%; followed by carbon dioxide(CO2), accounting for about 30% to 40%; the remaining is hydrogen sulfide(H2S), nitrogen(N2), hydrogen(H2) and carbon monoxide(CO) , account for about 5% of the total volume. Biogas calorific value is about 5500-5800 kcal/m3.

Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator


Biogas power generation consists of three systems: biogas production system, biogas clean system and biogas power generation system. Finally low or high voltage electricity is generate (110V/230V/400V/6300V/10500V), both power grid parallel and island operation mode can be customized, electricity generated either be sent to power grid or for self-usage. Exhaust heat of biogas genset can be recovered for heating, bathing or biogas production.
Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator

Biogas Generator Profile
Biogas generator set is suitable for industrial sewage biogas, livestock manure biogas, food waste biogas and landfill biogas power generation. In view of the corrosive characteristics of biogas sulphurous, adopting new technology and new material to the engine intake system, combustion system components and inter-cooler, turbocharger and other ancillary equipment for anti-corrosion treatment, to extend its life.
Biogas generator can be used in grid-connected operation and distributed energy system, multi-units parallel island operation, uniform power distribution, timely response of loading and unloading, stable operation.
Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator

Biogas Quality Suggested
  • Gas temperature≤40ºC
  • Gas pressure 2.5~10kPa
  • Methane content≥50%
  • Pressure change rate≤1kPa/min
  • Moisture content≤40g/Nm3,no free water
  • Sulfur ≤200mg/Nm3
  • NH3 ≤20mg/Nm3
  • Impurity content≤30mg/Nm3
  • Impurity size≤5μm
Biogas Generator Specification

50kw-400kw specification
ItemTechnical specification
Model50GF100GF150GF200GF250GF300GF300GF400GF
Cylinder/type4.L6.L6.L6.L6.L6.L8.L6.L
Cylinder diameter*stroke (mm)105*130114*135126*130126*155127*165152*180170*200200*210
Displacement(L)4.58.39.711.612.519.636.339.6
Rated speed(r/min)15001500150015001500150010001500
Rated power (kW)50100150200250300300400
Rated thermal consumption(MJ/kW·h)1111111111111111
Oil consumption(g/kW·h)1.51.51.51.51.51.51.01.5
Voltage(V)400V400V400V400V400V400V400V400V
Current(A)90180271361451541541722
Frequency(HZ)50
Power factor(COSΦ)0.8 (Lagging)
Phase and connecting 3phases 4wires
Start mode24V Electric motor
Dimension(mm) (L×W×H)2100*820*15002300*850*15502900*1000*15003200*1200*16003400*1200*16003500*1500*19704500*1400*22004000*1300*2000
Weight(kg)10001500190022002500390076004500
400kw-1500kw specification
 ItemTechnical specification
EngineModel6300D/Z6300D/Z-18300D/Z-18300D/Z-2 8300ZLD/Z-19300ZLD/Z9300ZLD/Z-1
TypeInline, water cooled, four stroke, spark plug ignition
Non-turbochargedTurbocharged, inter-cooled
Cylinder number689
Cylinder diameter (mm)300
Rated speed(r/min)500600500600600600600
Rated power (kW)450550660770110013201650
Rated thermal consumption(MJ/kW·h)≤10.5
Rotate direction (From flywheel)Clockwise
Start modeCompressed air /motor startCompressed air start
Exhaust temperature (ºC)≤600≤650
Oil consumption(g/kW·h)≤0.8≤1.0
Generator setType400GFZ500GFZ600GFZ700GFZ1000GFZ1200GFZ1500GFZ
Rated power(kW)400500600700100012001500
Frequency(HZ)50
Voltage(V)400/6300/10500
Current(A)722/46/28902/57/341083/69/411263/80/481804/115/692165/137/822710/172/103
Power factor (COSΦ)0.8 (Lagging)
Phase and connecting3phases 4wires/3phases 3wires
Dimension (L×W×H)(mm)5800×1600×29006400×1600×29006400×1600×31008500×1900×37008500×1900×3700
Weight(kg)1800022000250004200042000

Biogas Generator Technical Features
ØLarge cylinder, ensure stable and constant power output
Large cylinder, long stroke, low speed and big power reserves, ensure stable and constant power output.
ØLow speed ensure service life
Low &medium speed reduces components wear, extends service life, reduces components inventory and improve economic benefit.
ØNaturally aspirated
Naturally aspirated, low gas intake pressure requirement (gas pressure ≥2kPa), strong adaptability to gas pressure fluctuation.
ØTargeted designed & High adaptability
For biogas containing H2S, main components are under special treatment, enhance corrosion resistance; for high CO2content in biogas, air-fuel ratio and ignition system are optimized, enhance unit adaptability.


Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator

Why Zichai Biogas Generator Set?
1. Development and manufacturing internal combustion engine since 1970
2. Factory area over 330000m2 & over 2200 employees
3. Highly versatile power generator with ability to handle more than 20 different gases
4. More than 200 employees dedicated to developing and improving power generator for various gas.
5. More than 1000 systems installed in over 20 countries using a variety of gases.
6. More than 50 people in the Customer Service Department making the Organization very Customer Responsive.

Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator

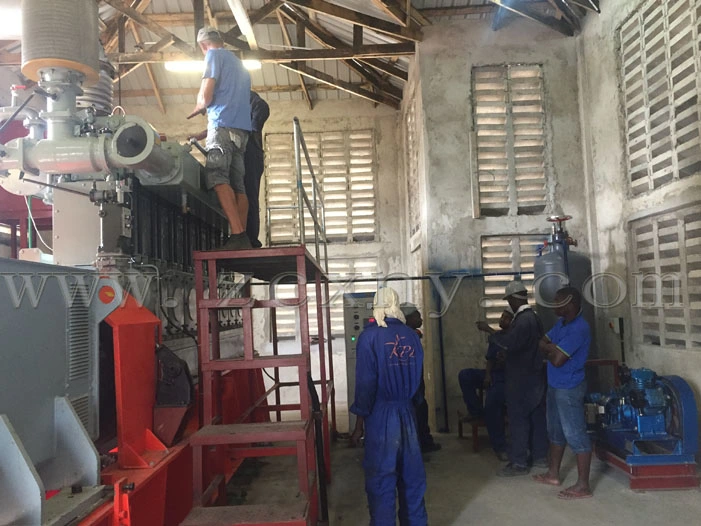

Project References
Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator
Waste Water Plant Biogas Power Generation 30kw - 500kw Biogas Generator


FAQ

1.Are you a trading company or manufacture?
Manufacture with factory.
2.What kinds of gas generator set do you produce?
It covers for all kinds of gas produced in agriculture and industry, including biomass gas, biogas, natural gas, coal mine gas, coke oven gas, semi-coke gas and syngas, as well as related gas produce equipment.
3.What is your delivery time?
Normally within 60days, it depends on the configuration and quantity, please confirm with us before order.
4.What is your payment terms?
T/T or L/C.
5.How do you pack products?
Standard export packaging. Equipment packing with plastic bag, and with new solid wooden box, suitable for long-distance sea transportation, moisture-proof, earthquake, rust-proof and anti-brutal handling.
6.What is your available port of shipment?
Normally Qingdao port, other ports available according to customers' requirement.
