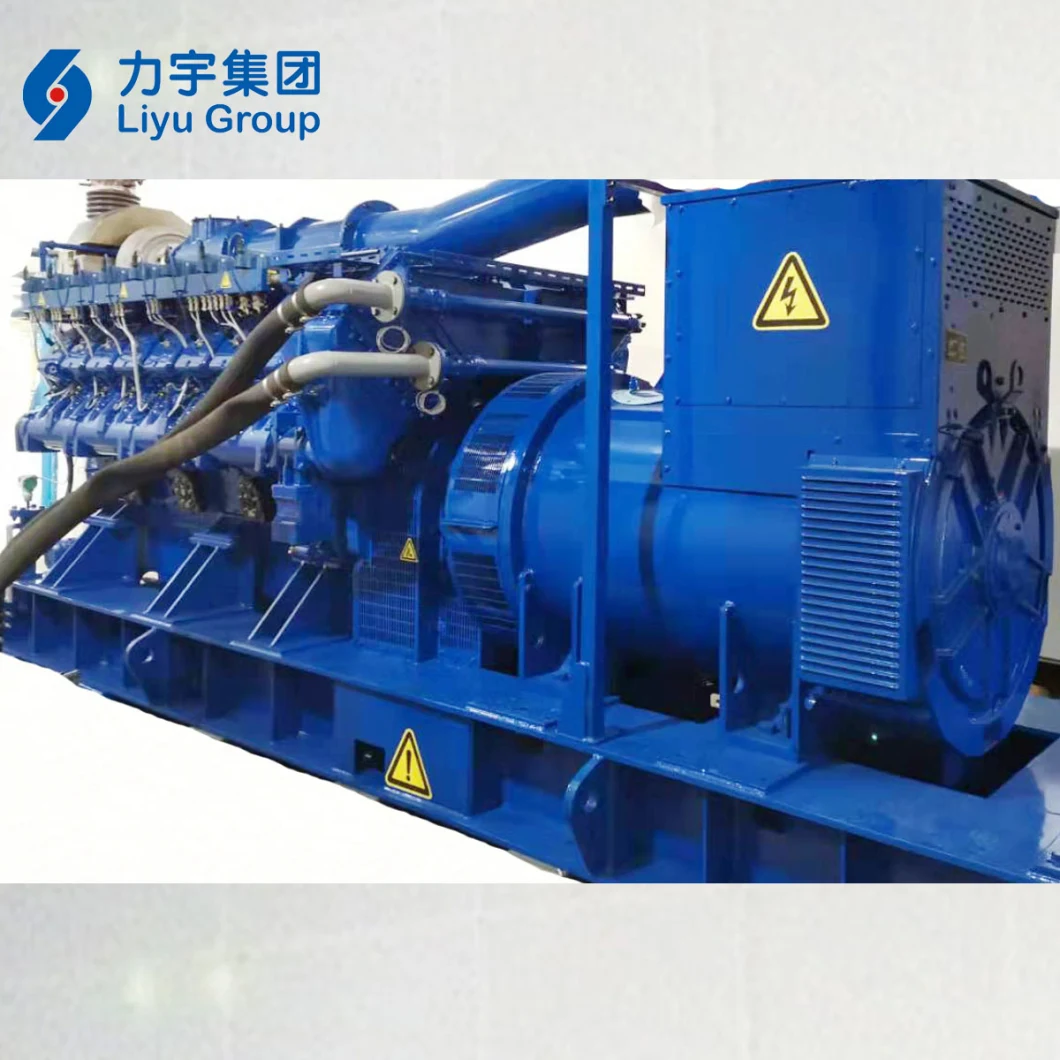

Liyu New Energy 1.5MW 400V Sewage Treatment Plant Biogas Landfil Gas Power Generators Set


LY1500GL-Z Biogas Low Voltage Genset Technical Parameters 50Hz
NOX≤500mg/Nm³1)
Minimum Low Heating Value (LHV) Min: 5.0 KWh/Nm³                    Sewage Treatment Biogas (65% CH4, 35% CO2)
Biological Biogas (60% CH4, 32% CO2, others N2)                                Landfill Biogas (50% CH4, 27% CO2, others N2)
Engine ModelLY16V170-Z
Engine power2) kW1502
Rated rotation speed r/min1500
Average effective pressure MPa1.7
Exhaust gas temperature ºC≤500
Wet exhaust flowAboutkg/h7876
Combustion air flow±8%kg/h6999
Inlet air temp after intercooling±5ºC50
Ventilation volume3)Aboutkg/h36220
Engine Technical Parameters
Bore/Stroke mm170/195
Displacement dm370.8
Average piston speed m/s9.75
Lubricant capacity4) dm3240
Lubricant consumption rate with 100% load g/kWh≤0.4
Alternator
Efficiency %97.2
Energy BalanceLY1500GL-Z
Output electric power5) kW1460
High temp coolant heat±8%kW898
Low temp coolant heat±8%kW125
Heat of exhaust gas cooled to 150 ° C±8%kW816
Radiated heat from the engineAboutkW52
Radiated heat from the alternatorAboutkW42
Gas consumption±5%kW3696
Electrical efficiency %39.5
Thermal efficiency %46.4
Total efficiency %85.9
System Parameters
Min/Max flow of high temp coolant m3/h52/66
Engine Kvs value6) m3/h46
Flow of low temperature coolant m3/h40
Intercooler Kvs value6) m3/h72
Engine coolant capacity dm3151
Intercooler coolant capacity dm352
High temp coolant temperature inlet/outlet ºC76/89
Low temp coolant temperature inlet/outlet ºC46/49
Max exhaust back pressure kPa5
Max pressure drop before the air filter kPa0.5
Gas pressure range kPa5-15
Startup method and battery capacity  Electric startup & DC24V@360Ah
1) Exhaust gas emission: Oxygen content 5%, dry exhaust gas, NOx≤500mg/Nm3
2) Engine power rating is based on ISO 3046/1 standard
3) The amount of ventilation air at Delta T=15K, including the amount of combustion air
4) Piping and lubricant heat exchangers are excluded
5) Frequency 50Hz, voltage 400V, power factor is 1.0
6) The Kvs value refers to the flow rate with a pressure loss of 1 bar
This data is for reference only and is not intended to be a binding value. Please refer to the information in the technical agreement.
Genset ModelLY1500GL-Z
Dimensions
LengthAboutmm5940
WidthAboutmm1700
HeightAboutmm2615
Net weightAboutkg12500

Noise
Sound power levelMultiplierHz32631252505001000200040008000
Exhaust noise120dB (A)109115122121118110109107106
Unit noise103dB (A)9610195969697969597

Exhaust gas noise at 1 meter, ±2.5 dB (A)
Unit side noise at 1 meter, ±1 dB (A)
