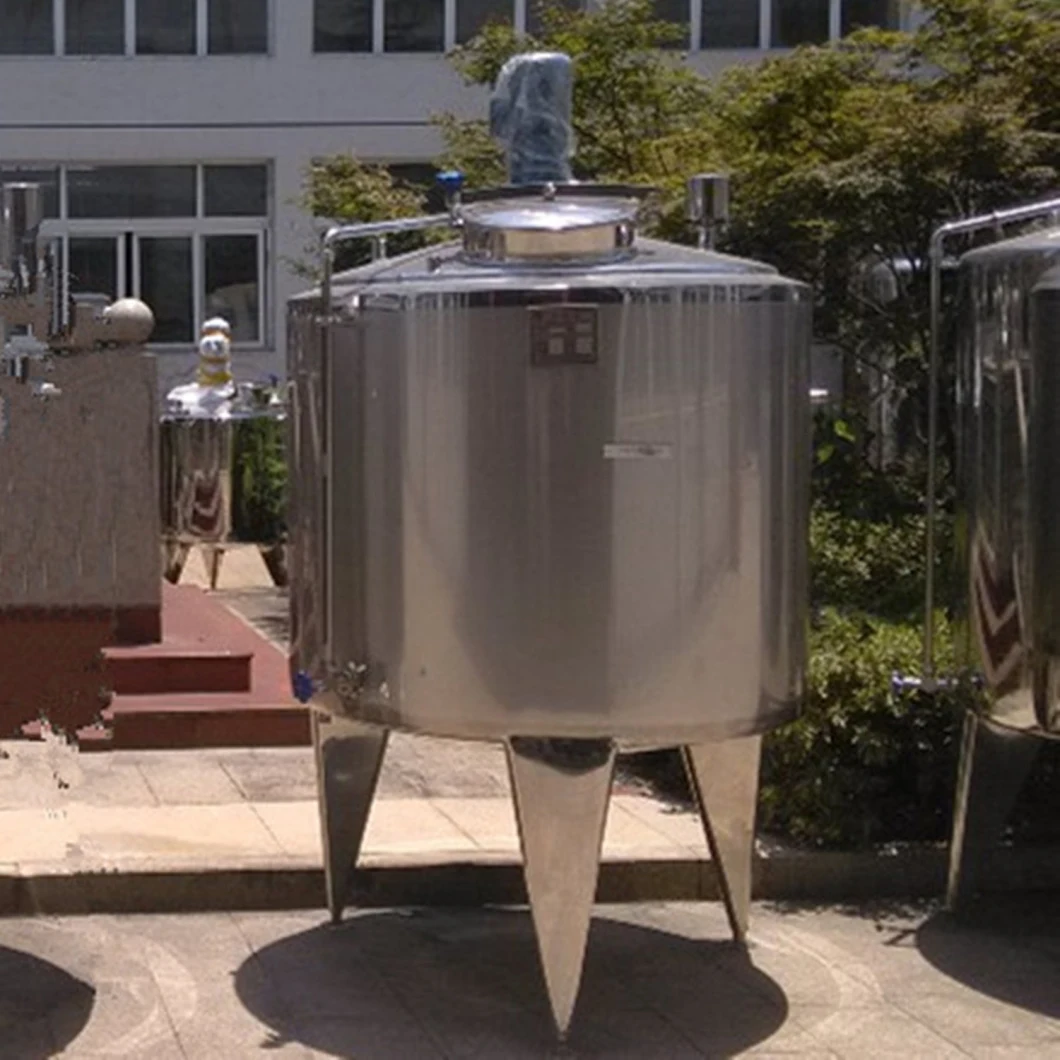

Stainless Steel Tank Blending Tank Mixing Tank Fermentation Tank
Product information:
Blending preparation tank , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .
Stainless Steel Tank Blending Tank Mixing Tank Fermentation Tank
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel , and it in accordance with GMP production standard .
It is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jackey can be used for heating or cooling , attached with external heat preservation layer .
Working princicle .
The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material
Configuration
1) Manhole
2) CIP cleaner
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) Eddy-proof board
8) Dismountable Inlet assembly
9) Sanitary breathing cover
Stainless Steel Tank Blending Tank Mixing Tank Fermentation Tank
Product information:
Blending preparation tank , also called as materials blending tank or materials mixing tank , have the advantages such as being energy saving , corrosion-proof , strong productivity and easy to clean etc .
Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer | Motor power | Blending speed |
| (L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 500 | 840*1000 | 2750 | 60 | 38 | 0.55 | Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available |
| 600 | 920*1000 | 2850 | 60 | 38 | 0.55 | |
| 700 | 990*1000 | 2850 | 60 | 38 | 0.55 | |
| 800 | 950*1220 | 3000 | 60 | 38 | 0.55 | |
| 900 | 1010*1220 | 3000 | 60 | 38 | 0.55 | |
| 1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 | |
| 1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 | |
| 2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 | |
| 3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 | |
| 4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 | |
| 5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 | |
| 6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 | |
| 7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 | |
| 8000 | 2060*2440 | 5000 | 60 | 51 | 3 | |
| 9000 | 2180*2440 | 5050 | 60 | 51 | 3 | |
| 10000 | 2300*2440 | 5050 | 60 | 51 | 3 | |
| 12000 | 2270*3000 | 5600 | 60 | 51 | 4 | |
| 15000 | 2530*3000 | 5700 | 60 | 51 | 4 | |
| 20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
Stainless Steel Tank Blending Tank Mixing Tank Fermentation Tank
And it is mainly used for blending and homogenizing of dairy products , sugar , other elements and various medicines , as an indispensable equipment for dairy products, beverage and pharmacy manufacturers . It is made of SUS304 or 316 stainless steel , and it in accordance with GMP production standard .
It is a type of tank makes enzymes decompose in optimum conditions and converts certain substances into some other substances with better performances through action of enzymes . The jackey can be used for heating or cooling , attached with external heat preservation layer .
Working princicle .
The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material
Configuration
1) Manhole
2) CIP cleaner
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) Eddy-proof board
8) Dismountable Inlet assembly
9) Sanitary breathing cover
